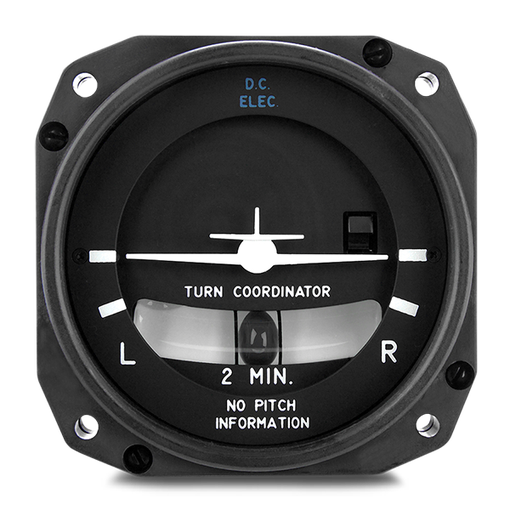

Turn Coordinator | 11-32V, 3-Pin, Non-Lighted, Brushless
$1,673.00
The 1394T Series Turn Coordinator displays the rate of turn, quality and coordination of the turn, and roll information. Measurements are made relative to the strength of the force of gravity and the force of inertia caused by a turn.
Part Number
1394T100-7B
Model Number
1394T100
Manufacturer
Mid-Continent Instruments and Avionics
Technical Description
11–32 VDC, 3-pin, Black ball, Brushless
Benefits
- 4,500 hours MTBF
- Standard 2-minute turn indication
- 11 – 32V input voltage range
- 0.80A max starting, 0.35A running
- White inclinometer background with black ball
- Clear glass
- Compact 3 1/8″ size fits standard panel cutout
- Front or rear panel mount
- One-year limited warranty
- Designed and built in Wichita, Kansas, USA
- FAA TSO certified to C3e
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
