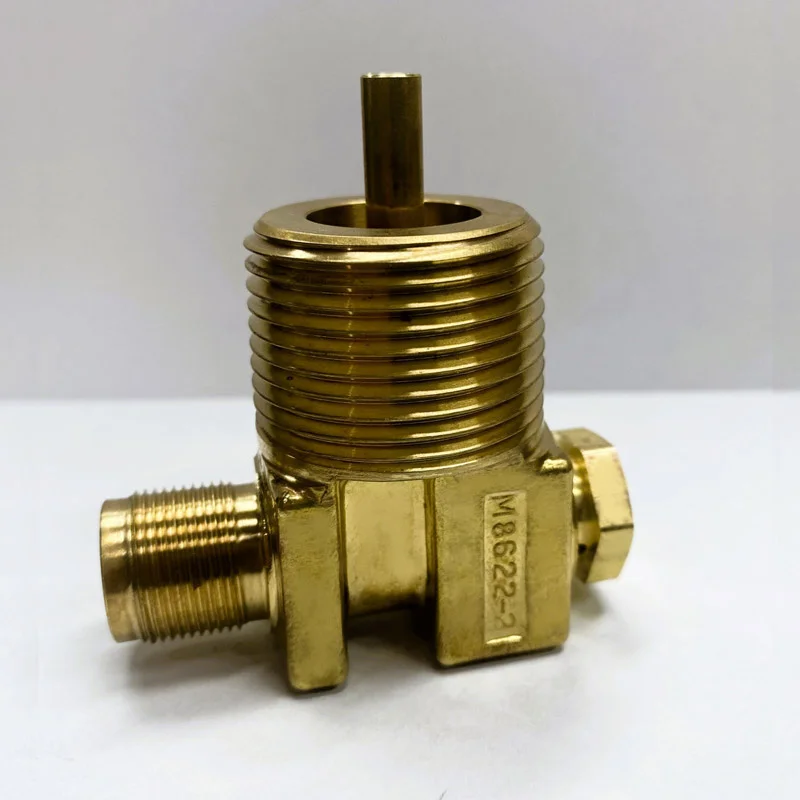

High Pressure Automatic Opening Valve MS22012

Description

Constructed per MIL-PRF-8622 (s/s MS22012), these valves are designed to open automatically when a coupling nut is connected to the valve outlet while closing when it is disconnected, thus allowing flow from remotely located cylinders.

– 1″ ANPT Inlet
– Flow rate at fully open 50-65 LPM
– Operating pressure 1800 PSI
– Brass construction
– Overpressure rupture disk 2700 to 3000 PSI max*
– Operating Temperature -65F to 165F
– Pressure drop 5 PSI max @ 55 LPM

*2500-2775 PSI Available as a special order 5410L
