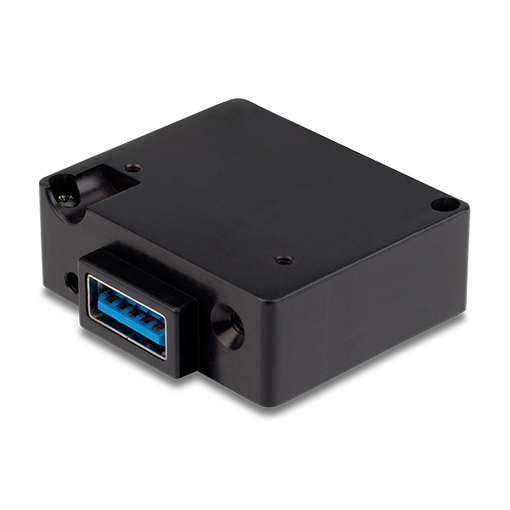

High Power USB Charger
$211.00
Part Number
6430202-10
Model Number
TA202
Manufacturer
Mid-Continent Instruments and Avionics
Technical Description
USB-A (15W at 3A), 10–32 VDC in, Bottom connector
Description
New Outright
No core return required
Specifications
Output Power
15 W per port
Output Voltage
5 VDC ± 0.25 per port
Output Current
3.0 amps per port
Input Power
18 W per port (maximum)
Input Voltage
10 – 32 VDC
USB Connector
Single USB-A
Power Input
Bottom
Weight
0.8 ounces (23 grams)
Dimensions
1.5″W x 0.52″H x 1.25″D
Mating Connector Kit
MCI P/N 9017960 (included)
Mounting
Front or rear; faceplates and adapter plates (optional)
Installation
In-seat, cabin, cockpit and galley
Faceplates
9019351-1
9019384-3
Adapters
9010361-1
9010361-3
Dust Covers
9019313-1
9019313-2
Case
Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
CAAC CTSO C71
RTCA DO-160G
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 1.5 × 0.52 × 1.25 in |
