Digital Counter Drum Encoding Altimeter
$4,000.00
Description
New Outright
No core return required
Limited Stock. If unavailable, estimated lead time 6 weeks.

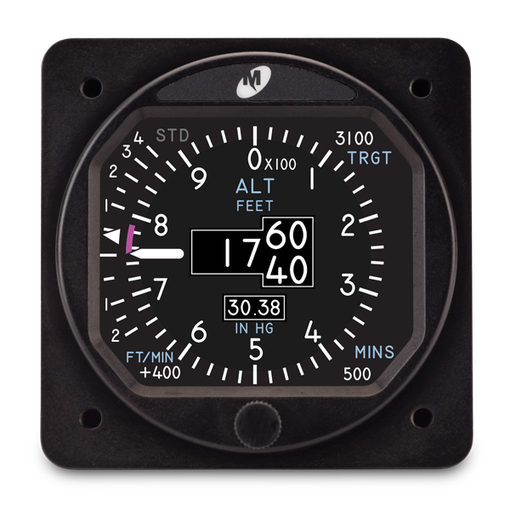

The MD23-215 Digital Counter Drum Encoding Altimeter features an operating range of up to 55,000 feet. It offers user-selectable vertical speed indication and user-selectable 6 second vertical trend. The digital altimeter is TSO certified and SSEC and Night Vision Imaging System (NVIS) compatible versions are available.
Specifications
Power Input
10–32 VDC
0.14A @ 28 VDC; 4 watts nominal
Data Input
ARINC 429: Low or high speed; Labels 234, 235
Pressure: Absolute/Static (Quick Disconnect)
Data Output
ARINC 429: Low or high speed; Labels 203, 204, 212, 217, 234, 235
Gray Code
Operating Range
-1,500 to +55,000 feet
Units of Measure
Altitude: Feet or meters
Barometric Setting: Millibars (mb), hectopascals (hPa) or inches of mercury (in.Hg)
Lighting
5, 14, or 28 VDC external control or internal photocell for automatic dimming
Battery
Rechargeable, field-replaceable emergency battery supply (available)
P/N 6430006-(1)
Technology: Nickel-Metal Hydride (NiMH)
Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity)
Runtime: 60 minutes @ 0.25A
Weight
0.4 lbs (0.17 kg)
Mounting
Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
Dimensions
2.43″W x 2.43″H x 1.0″D (61.7mm x 61.7mm x 25.4mm)
Mating Connector
P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
P/N 9019162-2: Pneumatic fitting (Quick Disconnect)
Certification
FAA TSO certified to C10c, C106, C113b
RTCA DO-160G qualified
RTCA DO-178C qualified, Design Assurance Level (DAL) A
Rights
U.S. Patent 11,048,389
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 2.43 × 2.43 × 1 in |
