Digital Annunciation Control Unit
$2,500.00
Description
New Outright
No core return required
Limited Stock. If unavailable, estimated lead time 6 weeks.

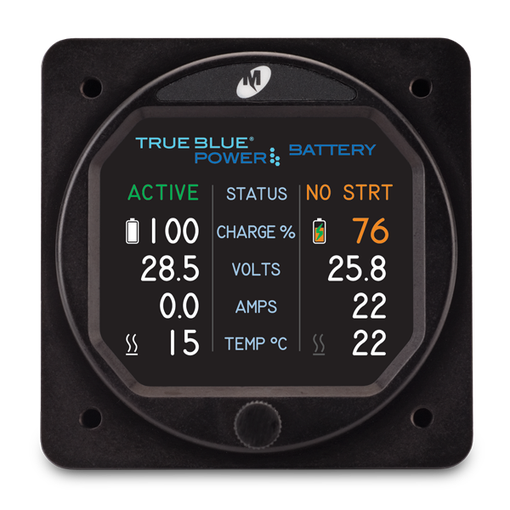

The TSO-certified MD23-104 Digital Annunciation Control Unit monitors and displays True Blue Power® Gen5 Lithium-ion Battery parameters. It provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data. Night Vision Imaging System (NVIS) compatible versions are available.
Specifications
Power Input
10–32 VDC
0.14 A @ 28 VDC; 4 watts nominal
Data Input
ARINC 429
Data Output
ARINC 429
Battery
Rechargeable coin cell (memory only)
Rechargeable, field-replaceable emergency battery supply (available)
P/N 6430006-(1)
Technology: Nickel-Metal Hydride (NiMH)
Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity)
Runtime: 60 minutes @ 0.25A
Weight
0.4 lbs (0.17 kg)
Mounting
Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
Dimensions
2.43″W x 2.43″H x 1.0″D (61.7mm x 61.7mm x 25.4mm)
Mating Connector
P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
Certification
FAA TSO certified to C2d, C106, C113b
RTCA DO-160G qualified
RTCA DO-178C qualified, Design Assurance Level (DAL) A
Rights
U.S. Patent 11,048,389
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 2.43 × 2.43 × 1 in |
