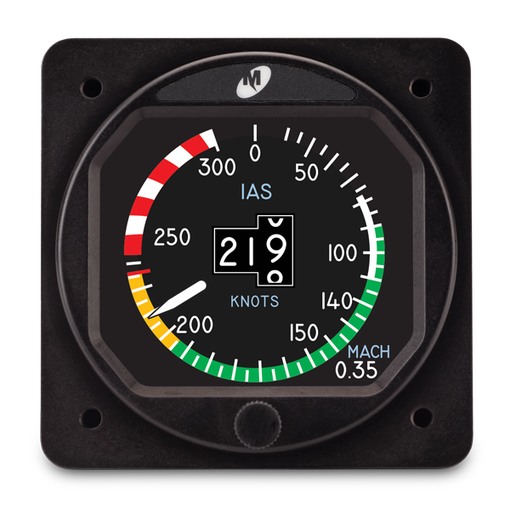

Digital Airspeed Indicator

Power Input
10–32 VDC
0.14A @ 28 VDC; 4 watts nominal

Data Input
ARINC 429: Low or high speed; Labels 210, 312
Pressure: Absolute/static and differential/pitot (Quick Disconnect)

Data Output
ARINC 429: Low or high speed; Labels 205, 206

Operating Range
Configurable range of 160, 200, 300, 400 or 500 knots

Units of Measure
Knots or miles per hour (MPH)

Lighting
5, 14, or 28 VDC external control or internal photocell dimming

Battery
Rechargeable, field-replaceable emergency battery supply (available)
P/N 6430006-(1)
Technology: Nickel-Metal Hydride (NiMH)
Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity)
Runtime: 60 minutes @ 0.25A

Weight
0.4 lbs (0.17 kg)

Mounting
Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel

Dimensions
2.43″W x 2.43″H x 1.0″D (61.7mm x 61.7mm x 25.4mm)

Mating Connector
P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
P/N 9019162-2: Pneumatic fittings (Quick Disconnect)

Certification
FAA TSO certified to C2d, C106, C113b
RTCA DO-160G qualified
RTCA DO-178C qualified, Design Assurance Level (DAL) A

Rights
U.S. Patent 11,048,389
