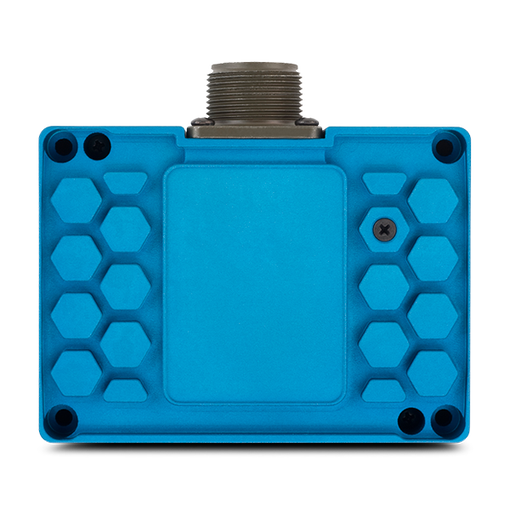

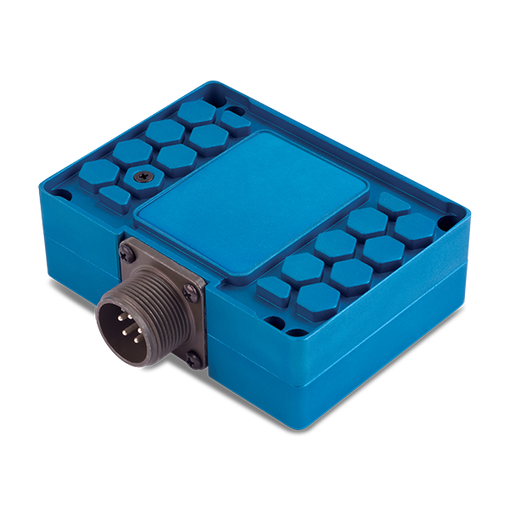

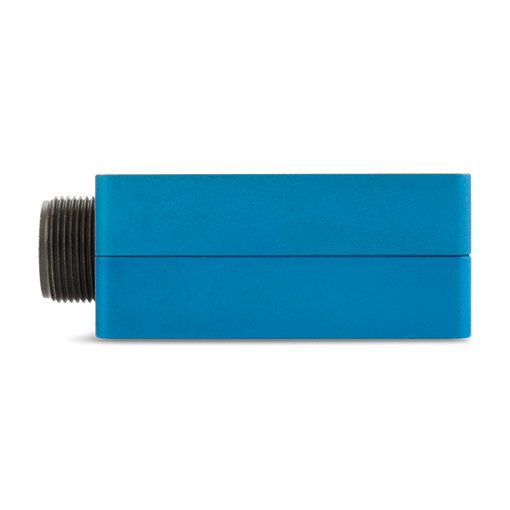

DC-to-DC Voltage Converter 6430234-1
$1,243.00
The TC230 DC-to-DC voltage converter utilizes your aircraft’s 14-volt system to power 28-volt avionics, instruments and accessories, including radios, GPS and electronic equipment. The TSO-certified TC230 from True Blue Power is the smallest and lightest step-up converter in aviation today.
Description
Benefits
- Supplies 230 watts of 28-volt power to electronic equipment, including lighting and cabin accessories
- Lightweight — 0.70 lbs
- 230 watts output power
- 90% efficiency
- Input Voltage: 10 – 18 VDC
- Input Current: 18.0 A Nominal
- Output Voltage: 28 VDC
- Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
- Rated from -67°F to +158°F (-55°C to +70°C)
- Mating Connector: P/N 9018654
- FAA TSO C71 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Additional information
| Weight | 0.70 lbs |
|---|
