Battery Tester / Charger
$1,299.00
Description
New Outright
No core return required
Out of Stock. Estimated Lead Time 4 Weeks.

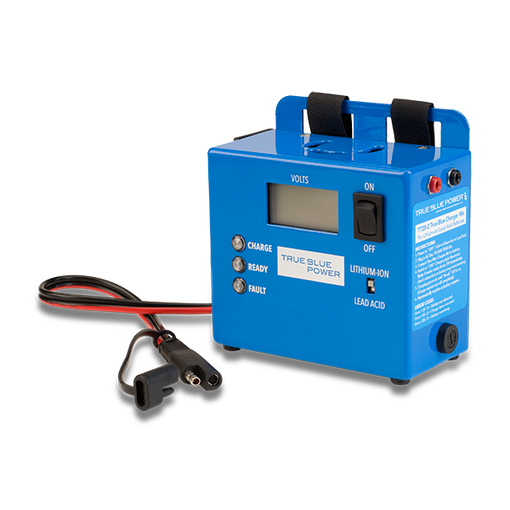

Charge and maintain lithium-ion and lead-acid aircraft batteries with the intelligent and compact TT28-2 True Blue Charger Mx. Featuring a ring terminal battery connector, this 2.5 amp charger maintains batteries of any capacity, from zero to full state-of-charge, while displaying battery voltage.
Specifications
Input Voltage
90 – 264 VAC, ±10%
47 – 63 Hz
1A (maximum)
Input Connector
IEC60320-C13
Battery Charge Voltage
Lithium-ion 28.8V (maximum)
Lead-acid 28.6V (maximum)
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-28°C to +70°C (-18°F to +158°F)
Timing Accuracy
±5% of nominal time
Display Accuracy
±0.2V
Weight
1.1 lbs (0.5 kg)
Dimensions
4.5”W x 4.5”H x 2.5”D
Battery Connector
Ring Terminal
Protection and Monitoring
Overcharge and over-temperature protection
Internal timer automatically monitors open-circuit voltage to determine top charge
