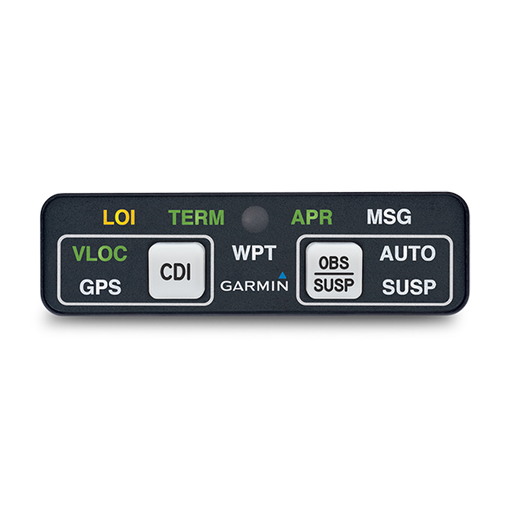

Annunciation Control Unit

Annunciation Control Unit

$1,115.00

Part Number

MD41-1514
Model Number

MD41
Manufacturer

Mid-Continent Instruments and Avionics
Technical Description

28V, Horizontal, 5V lighting
SKU: MD41-1514 Category:

Description

New Outright

No core return required

Out of stock. Contact us for estimated lead time.

Benefits

  • Compatible with Garmin GTN 6XX/7XX WAAS Navigators
  • Includes CDI and suspend mode switching, independent of OBS per new GTN requirements
  • Compact, self-contained GPS annunciation control unit
  • Automatic-dimming and daylight readable LED lighting
  • Single cutout and locking D-subminiature connector reduces installation costs
  • Quality Mil-Spec connector included
  • TSO-C129 certified
  • Qualified to RTCA DO-160 environmental specs
  • Designed and built in Wichita, Kansas, USA
  • One-year limited warranty
  • Specifications

    Orientation
    Horizontal

    Power Input
    28 VDC

    Lighting Input
    5 VDC

    Power Requirement
    0.20 A max

    Dimensions
    2.73”W x 0.80”H x 3.20”D

    Weight
    0.26 lb.

    Mating Connector
    Positronic RD25F10JVL0 or equivalent (MCI P/N 7014517)

    Instrument Panel Mounting
    Rear mount

    Certification
    FAA TSO-C129

    Environmental Qualification
    RTCA DO-160

Additional information

Weight 0.26 lbs
Dimensions 2.73 × 0.80 × 3.20 in
