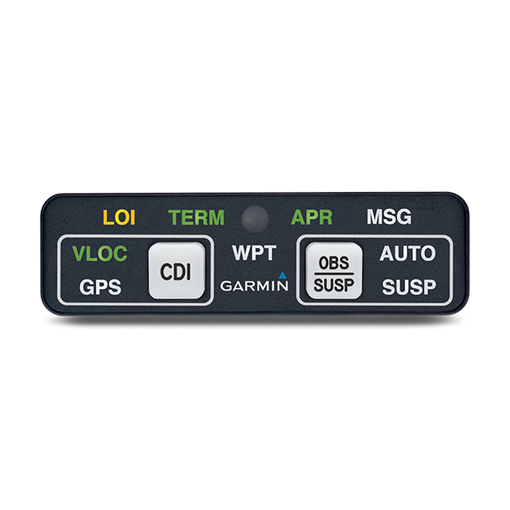

Annunciation Control Unit
$1,115.00
Part Number
MD41-1510
Model Number
MD41
Manufacturer
Mid-Continent Instruments and Avionics
Technical Description
28V, Horizontal
Description
New Outright
No core return required
Benefits
- Compatible with Garmin GTN 6XX/7XX WAAS Navigators
- Includes CDI and suspend mode switching, independent of OBS per new GTN requirements
- Compact, self-contained GPS annunciation control unit
- Automatic-dimming and daylight readable LED lighting
- Single cutout and locking D-subminiature connector reduces installation costs
- Quality Mil-Spec connector included
- TSO-C129 certified
- Qualified to RTCA DO-160 environmental specs
- Designed and built in Wichita, Kansas, USA
- One-year limited warranty
- Specifications
Orientation
HorizontalPower Input
28 VDCLighting Input
28 VDCPower Requirement
0.20 A maxDimensions
2.73”W x 0.80”H x 3.20”DWeight
0.26 lb.Mating Connector
Positronic RD25F10JVL0 or equivalent (MCI P/N 7014517)Instrument Panel Mounting
Rear mountCertification
FAA TSO-C129Environmental Qualification
RTCA DO-160
Additional information
| Weight | 0.26 lbs |
|---|---|
| Dimensions | 2.73 × 0.80 × 3.20 in |
